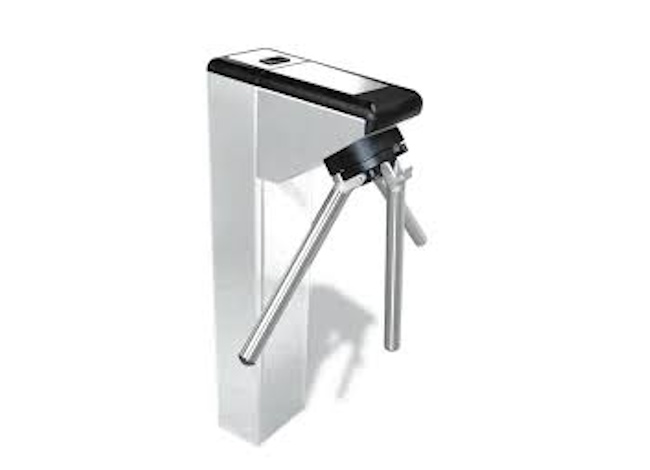

Catrax Plus Drop Stainless Steel

Features:

• Advanced Bidirectional Control: allows flexible access management in both directions, with customizable configuration for entry and exit.
• Emergency Drop Arm Function: in critical situations (e.g. fire alarm, power failure), the turnstile arms instantly lower, freeing the passage for quick and safe evacuation.
• Universal Compatibility with Identification Systems: supports integration with a wide range of readers, including RFID (badges, cards), biometrics (fingerprints, facial recognition), barcodes/QR and mobile credentials.
• Intuitive Visual Indicators: high-brightness LED lights clearly indicate the access status (green for passage allowed, red for passage denied), improving the user experience.
• Precise Passage Counter: accurately monitors the number of entries and exits, providing essential data for analyzing and managing people flows.
• Integrated Anti-Pass-Back Function: prevents repeated use of the same credential for multiple consecutive passages in the same direction, enhancing security.
• Mechanism Speed ​​Adjustment: allows you to adapt the rotation speed of the turnstile based on the intensity of the pedestrian flow.

Functions:

• Premium Construction Material (AISI 304 Stainless Steel): offers superior resistance to corrosion, oxidation, impacts and tampering attempts, making it ideal for indoor and outdoor environments.
• Elegant and Modern Design: the satin finish of the stainless steel gives the turnstile a professional and high-quality look that adapts to prestigious contexts.
• Ultra-Silent Mechanism: designed for extremely smooth and silent operation, contributing to a more comfortable environment.
• Modularity and Ease of Installation: modular structure that simplifies transportation, installation and any maintenance.
• Environmental Resistance: suitable for a wide range of temperatures and humidity, with particular resistance in marine or high salinity environments thanks to the SS304.
• Standard Connectivity: equipped with standard communication interfaces such as RS485 and TCP/IP (Ethernet) for easy integration with access management and supervision systems.
• Reliable Locking and Unlocking System: robust mechanism that guarantees safe locking and quick and precise unlocking.

Advantages:

• Maximum Durability and Long Useful Life: the use of AISI 304 stainless steel guarantees exceptional resistance and an extended operating life, reducing replacement and maintenance costs.
• High Anti-Intrusion Security: the robust mechanism and advanced control functions effectively prevent unauthorized access.
• Compliance with Safety Regulations: the drop arm function is essential to ensure safety in the event of an emergency, complying with fire and evacuation regulations.
• Prestigious Aesthetics: stainless steel provides a clean, modern and elegant appearance, ideal for representative entrances.
• Low Maintenance: the resistance of the materials significantly reduces the need for ordinary and extraordinary maintenance.
• Flow Efficiency: it also manages large volumes of people with fluidity, optimizing entry and exit times.
• Extreme Adaptability: the robustness of the material makes it suitable even for semi-external installations or in aggressive environments.

Field of Application:

• Industrial and Food Plants: in sectors where corrosion resistance and ease of cleaning are required, in addition to access control.
• Executive Buildings and Prestigious Corporate Headquarters: for employee and visitor access control in environments that enhance image and security.
• Luxury Shopping Centers and Retail: for managing customer flows, combining security and aesthetics.
• Airports, Train Stations and Terminals: for passenger control in high-traffic areas with stringent security requirements.
• Hospitals and Clinics: where hygiene, durability and security are critical factors for the control of staff and visitors.
• Museums, Art Galleries and Exhibition Centers: for managing public access, maintaining aesthetic harmony with the environment.
• Indoor Sports Facilities and Swimming Pools: for managing access for athletes and the public, resistant to humidity and chemicals.
• Universities and Modern Campuses: for controlling access for students and staff, ensuring safety and compliance.

• Capacity 21-23 people per minute.
• For indoor use.
• Material: stainless steel.
• Power supply 220 Volt AC.
• Electromagnet power 12 Vdc and 2 A.
• Sensor power 5 Vdc and 0.05 A.
• Consumption without anti-panic: 7W in stand-by, 20W with arm drop.
• Consumption with anti-panic: 15W in stand-by, 45W with arm drop.

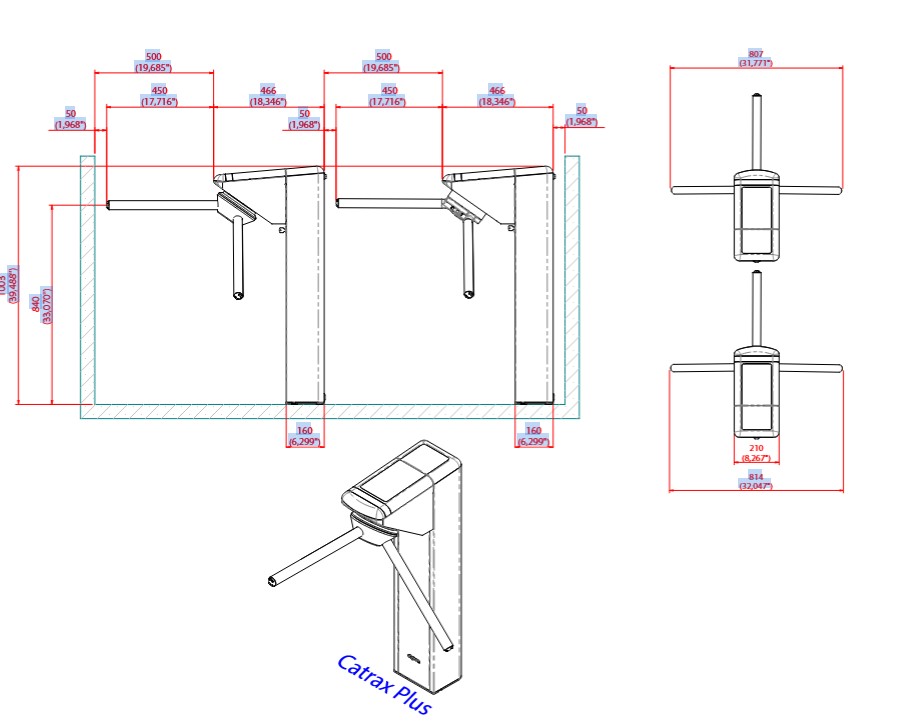

• Dimensions: 1003 x 870 x 210 mm (H x W x D).
• Rotor arms: fixed tubular arms in stainless steel with a diameter of 38 mm.
• Weight: 40 kg.
• Integrations: integrates with all access control and presence detection systems
  Release for entry/exit rotation controlled by a normally open clean contact
  Complete transaction/rotation exit, integrated conduits with traction cables in place, no exposed cables.
