M7 Palm: Contactless Palm Vein Recognition

Anviz M7 Palm Access Control: Contactless Palm Vein Recognition, RFID Badge Reader, for Outdoor IP66, TCP/IP PoE or Standalone.

M7 Palm: Riconoscimento Vene Palmo della Mano senza ContattoEN

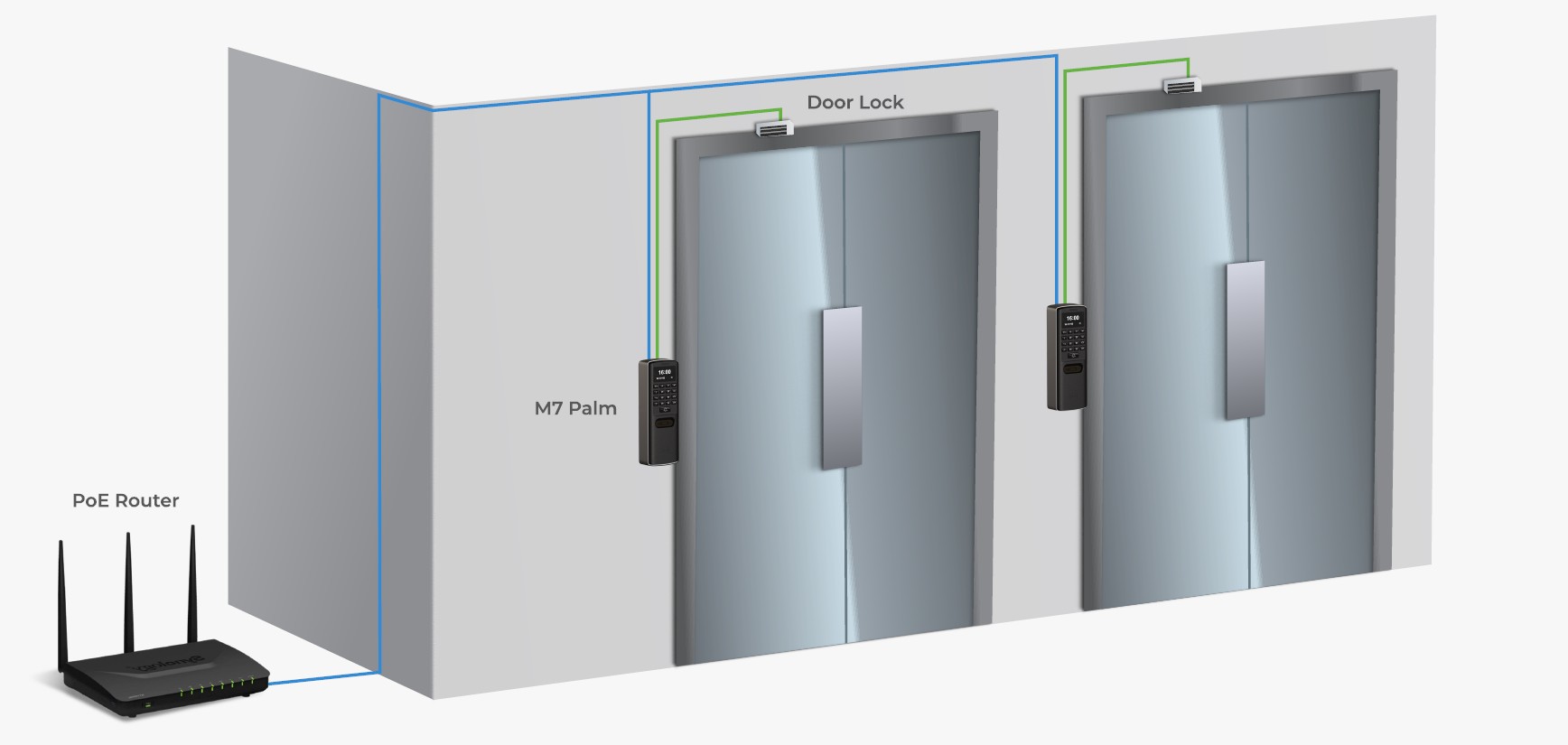

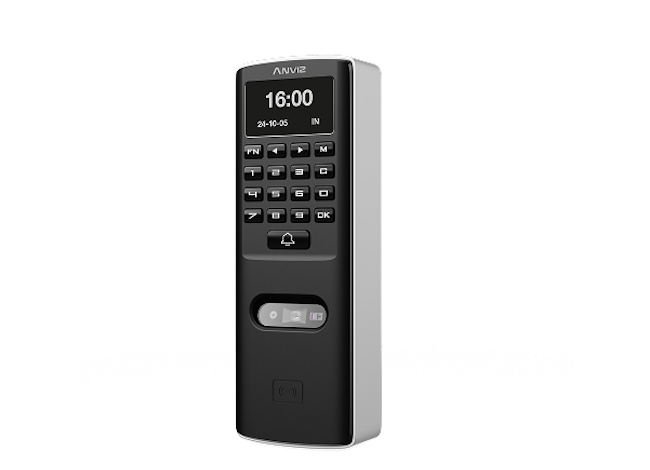

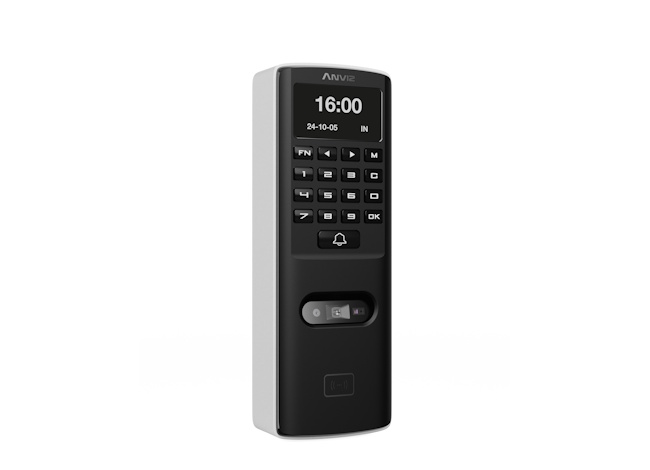

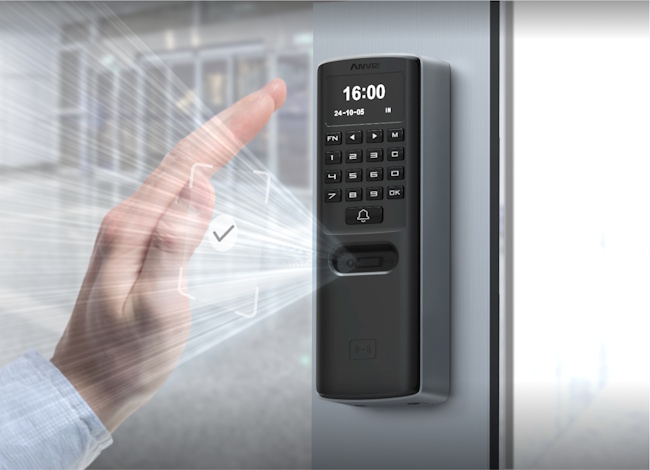

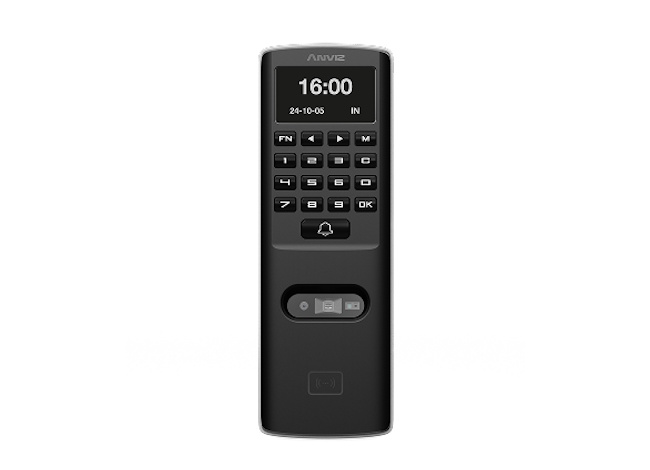

M7 Palm is the new generation Anviz access control device. M7 Palm adopts a new technology for palm vein recognition (contactless), or identification with Pincode or Rfid card. The M7 Palm access control detector is designed with PoE type communication, in IP66 outdoor environment, simplifying installation and reducing labor costs. M7 Palm has a relay output for door opening, Wiegand output for remote relay, user authorization management by time and weekdays. Host communication via TCP/IP PoE, RS485 and mini USB port. Tamper alarm and open door sensor for safe access control.

It is an ANVIZ product, distributed exclusively by Osti Sistemi.

Functions and equipment

Palm Vein Recognition

RFID card reader

PIN code

Door release relay

IP66 protection degree

LAN network card

PoE (power over ethernet)

Management software

Features

High-Light OLED display.

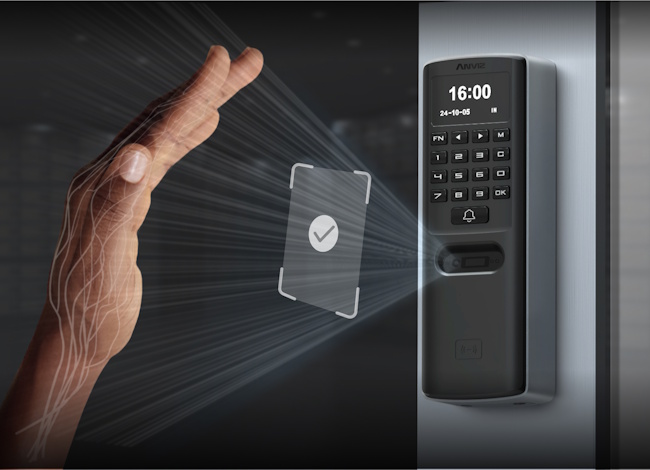

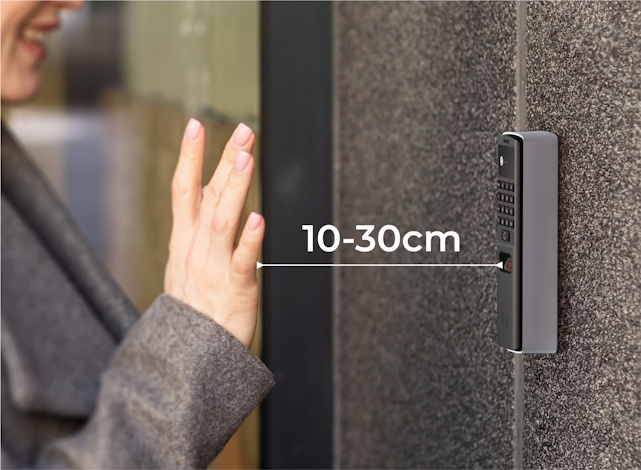

Palm vein recognition: reading distance from 10 to 30 cm.
Intelligent Measurement: Adopts ToF laser distance measurement technology for distance accuracy and clear display regardless of skin and hand color.

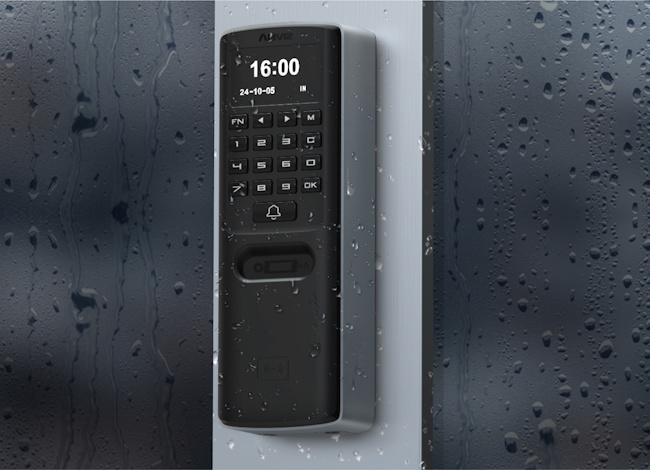

For outdoor IP66.
Management of up to 500 users with palm scanning and up to 500 cards.
M7 Palm can store up to 50,000 stampings (maximum number of stampings that can be stored without downloading data).

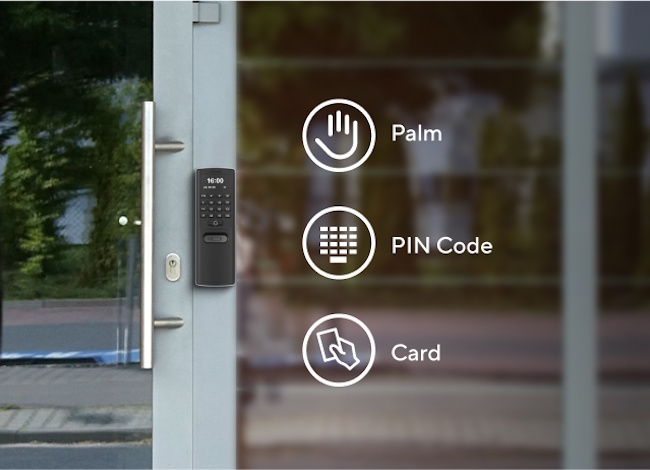

M7 Palm manages up to 3 different user identification methods: 1) palm scanning, 2) RFID card, 3) ID code plus password.

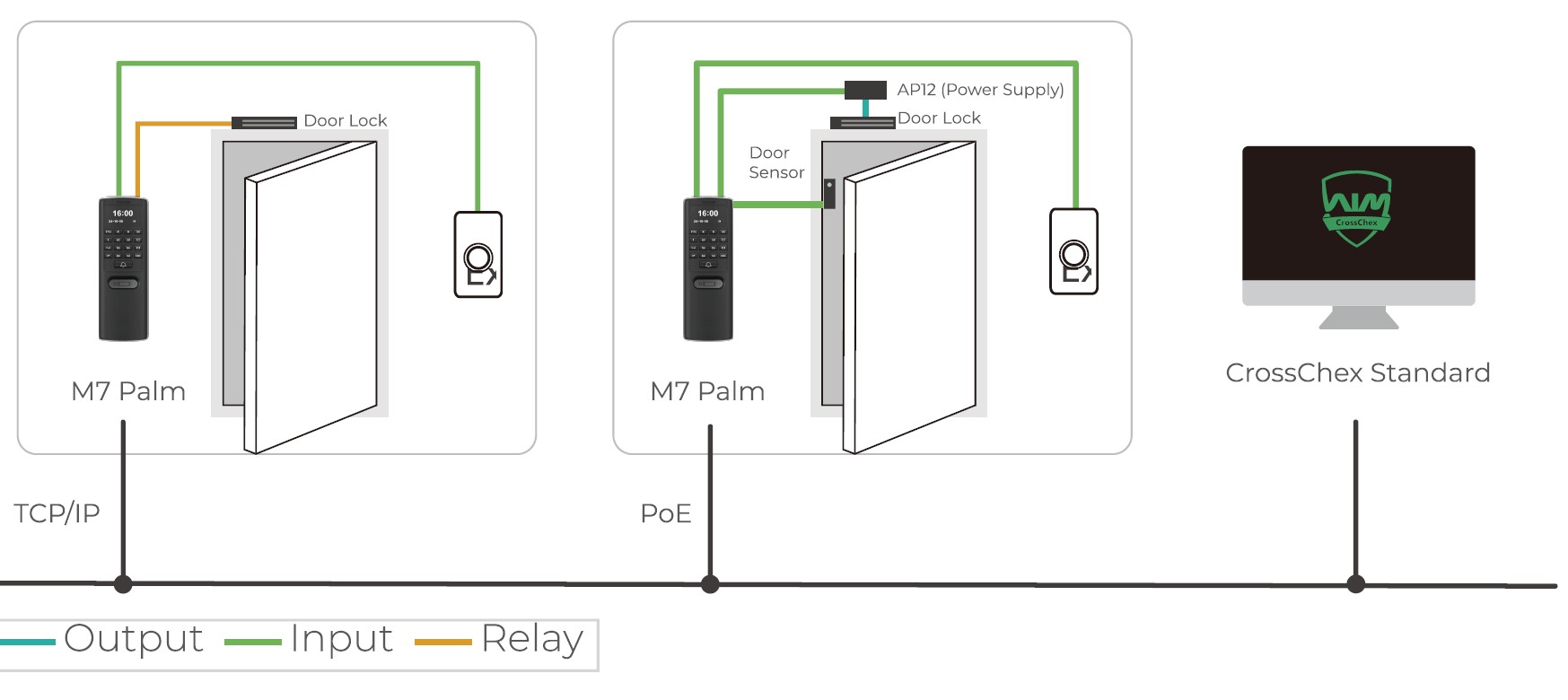

M7 Palm manages 3 different communication interfaces: a) TCP/IP PoE network configurable in two modes: SERVER (the host calls an IP address assigned to the M7 Palm), CLIENT in which the M7 Palm sends the stampings in real time to a public and static IP, this type of connection is recommended if we have many access control detectors to manage or if it is necessary to connect remote locations without VPN and only equipped with ADSL, b) Wiegand Out for connection to remote relay SC011 or to bell, c) Rs485 for slave terminal management (e.g. C2SR).
M7 Palm can be powered by DC 12V (if it works standalone), or with PoE standard IEEE802.3af.
Antenna for EM Rfid 125 Khz card reader.
M7 Palm has 1 internal relay for door opener management for access control with management of access time slots and days of the week. M7 Palm is also equipped with an "open door" sensor and an anti-burglary sensor that can be activated via access control software (Jweb-KEY).
The M7 Palm access detector has a RAM with lithium battery for data retention in the event of a forced shutdown.
M7 Palm allows employees to view their previous clockings.
M7 Palm can manage presence/absence causal codes of up to 6 digits, which can be associated with the clocking and managed directly by our Jweb-KEY access control software or JuniorWEB time attendance.
Possibility of sending text messages to the user, which will be displayed directly on the display when clocking in.
IP66 & IK10 protection, with metal case and completely resinated.
Firmware in 4 languages (including Italian).
